Raster DataFrame / SQL app

Note

Sedona uses 1-based indexing for all raster functions except map algebra function, which uses 0-based indexing.

Note

Sedona assumes geographic coordinates to be in longitude/latitude order. If your data is lat/lon order, please use ST_FlipCoordinates to swap X and Y.

Starting from v1.1.0, Sedona SQL supports raster data sources and raster operators in DataFrame and SQL. Raster support is available in all Sedona language bindings including Scala, Java, Python, and R.

This page outlines the steps to manage raster data using SedonaSQL.

ScalaJavaPython

var myDataFrame = sedona.sql("YOUR_SQL")
myDataFrame.createOrReplaceTempView("rasterDf")

Dataset<Row> myDataFrame = sedona.sql("YOUR_SQL")
myDataFrame.createOrReplaceTempView("rasterDf")

myDataFrame = sedona.sql("YOUR_SQL")
myDataFrame.createOrReplaceTempView("rasterDf")

Detailed SedonaSQL APIs are available here: SedonaSQL API. You can find example raster data in Sedona GitHub repo.

Set up dependencies¶

Scala/JavaPython

Read Sedona Maven Central coordinates and add Sedona dependencies in build.sbt or pom.xml.
Add Apache Spark core, Apache SparkSQL in build.sbt or pom.xml.
Please see SQL example project

Please read Quick start to install Sedona Python.
This tutorial is based on Sedona SQL Jupyter Notebook example.

Create Sedona config¶

Use the following code to create your Sedona config at the beginning. If you already have a SparkSession (usually named spark) created by Wherobots/AWS EMR/Databricks, please skip this step and use spark directly.

You can add additional Spark runtime config to the config builder. For example, SedonaContext.builder().config("spark.sql.autoBroadcastJoinThreshold", "10485760")

ScalaJavaPython

import org.apache.sedona.spark.SedonaContext

val config = SedonaContext.builder()
.master("local[*]") // Delete this if run in cluster mode
.appName("readTestScala") // Change this to a proper name
.getOrCreate()

If you use SedonaViz together with SedonaSQL, please add the following line after SedonaContext.builder() to enable Sedona Kryo serializer:

.config("spark.kryo.registrator", classOf[SedonaVizKryoRegistrator].getName) // org.apache.sedona.viz.core.Serde.SedonaVizKryoRegistrator

import org.apache.sedona.spark.SedonaContext;

SparkSession config = SedonaContext.builder()
.master("local[*]") // Delete this if run in cluster mode
.appName("readTestScala") // Change this to a proper name
.getOrCreate()

If you use SedonaViz together with SedonaSQL, please add the following line after SedonaContext.builder() to enable Sedona Kryo serializer:

.config("spark.kryo.registrator", SedonaVizKryoRegistrator.class.getName) // org.apache.sedona.viz.core.Serde.SedonaVizKryoRegistrator

from sedona.spark import *

config = SedonaContext.builder() .\
    config('spark.jars.packages',
           'org.apache.sedona:sedona-spark-shaded-3.3_2.12:1.8.0,'
           'org.datasyslab:geotools-wrapper:1.8.0-33.1'). \
    getOrCreate()

Please replace the 3.3 in the package name of sedona-spark-shaded with the corresponding major.minor version of Spark, such as sedona-spark-shaded-3.4_2.12:1.8.0.

Initiate SedonaContext¶

Add the following line after creating the Sedona config. If you already have a SparkSession (usually named spark) created by Wherobots/AWS EMR/Databricks, please call SedonaContext.create(spark) instead.

ScalaJavaPython

import org.apache.sedona.spark.SedonaContext

val sedona = SedonaContext.create(config)

import org.apache.sedona.spark.SedonaContext;

SparkSession sedona = SedonaContext.create(config)

from sedona.spark import *

sedona = SedonaContext.create(config)

You can also register everything by passing --conf spark.sql.extensions=org.apache.sedona.sql.SedonaSqlExtensions to spark-submit or spark-shell.

Load GeoTiff data¶

The recommended way to load GeoTiff raster data is the raster data source. It loads GeoTiff files and automatically splits them into smaller tiles. Each tile becomes a row in the resulting DataFrame stored in Raster format.

ScalaJavaPython

var rasterDf = sedona.read.format("raster").load("/some/path/*.tif")
rasterDf.createOrReplaceTempView("rasterDf")
rasterDf.show()

Dataset<Row> rasterDf = sedona.read().format("raster").load("/some/path/*.tif");
rasterDf.createOrReplaceTempView("rasterDf");
rasterDf.show();

rasterDf = sedona.read.format("raster").load("/some/path/*.tif")
rasterDf.createOrReplaceTempView("rasterDf")
rasterDf.show()

The output will look like this:

+--------------------+---+---+----+
|                rast|  x|  y|name|
+--------------------+---+---+----+
|GridCoverage2D["g...|  0|  0| ...|
|GridCoverage2D["g...|  1|  0| ...|
|GridCoverage2D["g...|  2|  0| ...|
...

The output contains the following columns:

rast: The raster data in Raster format.
x: The 0-based x-coordinate of the tile. This column is only present when retile is not disabled.
y: The 0-based y-coordinate of the tile. This column is only present when retile is not disabled.
name: The name of the raster file.

Tiling options¶

By default, tiling is enabled (retile = true) and the tile size is determined by the GeoTiff file's internal tiling scheme — you do not need to specify tileWidth or tileHeight. It is recommended to use Cloud Optimized GeoTIFF (COG) format for raster data since they usually organize pixel data as square tiles.

You can optionally override the tile size, or disable tiling entirely:

Option	Default	Description
`retile`	`true`	Whether to enable tiling. Set to `false` to load the entire raster as a single row.
`tileWidth`	GeoTiff's internal tile width	Optional. Override the width of each tile in pixels.
`tileHeight`	Same as `tileWidth` if set, otherwise GeoTiff's internal tile height	Optional. Override the height of each tile in pixels.
`padWithNoData`	`false`	Pad the right and bottom tiles with NODATA values if they are smaller than the specified tile size.

To override the tile size:

Python

rasterDf = (
    sedona.read.format("raster")
    .option("tileWidth", "256")
    .option("tileHeight", "256")
    .load("/some/path/*.tif")
)

Note

If the internal tiling scheme of raster data is not friendly for tiling, the raster data source will throw an error, and you can disable automatic tiling using option("retile", "false"), or specify the tile size manually to workaround this issue. A better solution is to translate the raster data into COG format using gdal_translate or other tools.

Loading raster files from directories¶

The raster data source also works with Spark generic file source options, such as option("pathGlobFilter", "*.tif*") and option("recursiveFileLookup", "true"). For instance, you can load all the .tif files recursively in a directory using:

Python

rasterDf = (
    sedona.read.format("raster")
    .option("recursiveFileLookup", "true")
    .option("pathGlobFilter", "*.tif*")
    .load(path_to_raster_data_folder)
)

Tip

When the loaded path ends with /, the raster data source will look up raster files in the directory and all its subdirectories recursively. This is equivalent to specifying a path without trailing / and setting option("recursiveFileLookup", "true").

Tip

After loading rasters, you can quickly visualize them in a Jupyter notebook using SedonaUtils.display_image(df). It automatically detects raster columns and renders them as images. See Raster visualizer docs for details.

Load non-GeoTiff data (NetCDF, Arc Grid)¶

For non-GeoTiff raster formats such as NetCDF or Arc Info ASCII Grid, use the Spark built-in binaryFile data source together with Sedona raster constructors.

Step 1: Load to a binary DataFrame¶

ScalaJavaPython

var rawDf = sedona.read.format("binaryFile").load(path_to_raster_data)
rawDf.createOrReplaceTempView("rawdf")
rawDf.show()

Dataset<Row> rawDf = sedona.read().format("binaryFile").load(path_to_raster_data);
rawDf.createOrReplaceTempView("rawdf");
rawDf.show();

rawDf = sedona.read.format("binaryFile").load(path_to_raster_data)
rawDf.createOrReplaceTempView("rawdf")
rawDf.show()

The output will look like this:

|                path|    modificationTime|length|             content|
+--------------------+--------------------+------+--------------------+
|file:/Download/ra...|2023-09-06 16:24:...|174803|[49 49 2A 00 08 0...|

For multiple raster data files, you can load them recursively:

Python

rawDf = (
    sedona.read.format("binaryFile")
    .option("recursiveFileLookup", "true")
    .option("pathGlobFilter", "*.asc*")
    .load(path_to_raster_data_folder)
)
rawDf.createOrReplaceTempView("rawdf")
rawDf.show()

Step 2: Create a Raster type column¶

All raster operations in SedonaSQL require Raster type objects. Use one of the following constructors:

From GeoTiff¶

SELECT RS_FromGeoTiff(content) AS rast, modificationTime, length, path FROM rawdf

From Arc Grid¶

SELECT RS_FromArcInfoAsciiGrid(content) AS rast, modificationTime, length, path FROM rawdf

From NetCDF¶

See RS_FromNetCDF for details on loading NetCDF files.

To verify the raster column was created successfully:

rasterDf.printSchema()

root
 |-- rast: raster (nullable = true)
 |-- modificationTime: timestamp (nullable = true)
 |-- length: long (nullable = true)
 |-- path: string (nullable = true)

Raster's metadata¶

Sedona has a function to get the metadata for the raster, and also a function to get the world file of the raster.

Metadata¶

This function will return an array of metadata, it will have all the necessary information about the raster, Please refer to RS_MetaData.

SELECT RS_MetaData(rast) FROM rasterDf

Output for the following function will be:

[-1.3095817809482181E7, 4021262.7487925636, 512.0, 517.0, 72.32861272132695, -72.32861272132695, 0.0, 0.0, 3857.0, 1.0]

The first two elements of the array represent the real-world geographic coordinates (like longitude/latitude) of the raster image's top left pixel, while the next two elements represent the pixel dimensions of the raster.

World File¶

There are two kinds of georeferences, GDAL and ESRI seen in world files. For more information please refer to RS_GeoReference.

SELECT RS_GeoReference(rast, "ESRI") FROM rasterDf

The Output will be as follows:

72.328613
0.000000
0.000000
-72.328613
-13095781.645176
4021226.584486

World files are used to georeference and geolocate images by establishing an image-to-world coordinate transformation that assigns real-world geographic coordinates to the pixels of the image.

Raster Manipulation¶

Since v1.5.0 there have been many additions to manipulate raster data, we will show you a few example queries.

Note

Read SedonaSQL Raster operators to learn how you can use Sedona for raster manipulation.

Coordinate translation¶

Sedona allows you to translate coordinates as per your needs. It can translate pixel locations to world coordinates and vice versa.

PixelAsPoint¶

Use RS_PixelAsPoint to translate pixel coordinates to world location.

SELECT RS_PixelAsPoint(rast, 450, 400) FROM rasterDf

Output:

POINT (-13063342 3992403.75)

World to Raster Coordinate¶

Use RS_WorldToRasterCoord to translate world location to pixel coordinates. To just get X coordinate use RS_WorldToRasterCoordX and for just Y coordinate use RS_WorldToRasterCoordY.

SELECT RS_WorldToRasterCoord(rast, -1.3063342E7, 3992403.75)

Output:

POINT (450 400)

Pixel Manipulation¶

Use RS_Values to fetch values for a specified array of Point Geometries. The coordinates in the point geometry are indicative of real-world location.

SELECT RS_Values(rast, Array(ST_Point(-13063342, 3992403.75), ST_Point(-13074192, 3996020)))

Output:

[132.0, 148.0]

To change values over a grid or area defined by geometry, we will use RS_SetValues.

SELECT RS_SetValues(
        rast, 1, 250, 260, 3, 3,
        Array(10, 12, 17, 26, 28, 37, 43, 64, 66)
    )

Follow the links to get more information on how to use the functions appropriately.

Band Manipulation¶

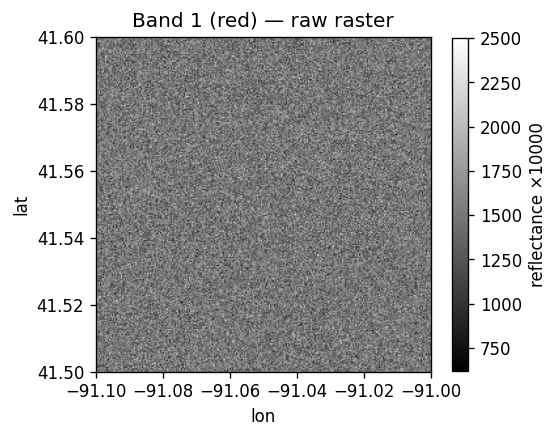

Sedona provides APIs to select specific bands from a raster image and create a new raster. For example, to select 2 bands from a raster, you can use the RS_Band API to retrieve the desired multi-band raster.

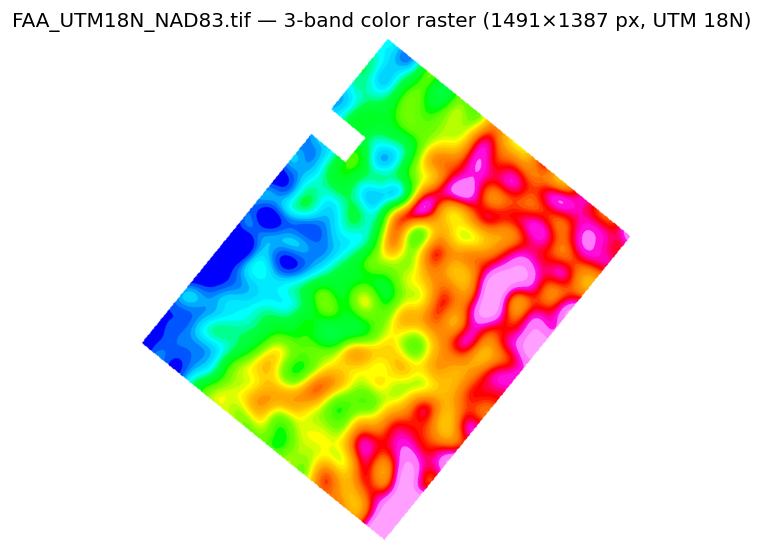

Let's use a multi-band raster for this example. The process of loading and converting it to raster type is the same.

SELECT RS_Band(colorRaster, Array(1, 2))

Let's say you have many single-banded rasters and want to add a band to the raster to perform map algebra operations. You can do so using RS_AddBand Sedona function.

SELECT RS_AddBand(raster1, raster2, 1, 2)

This will result in raster1 having raster2's specified band.

Resample raster data¶

Sedona allows you to resample raster data using different interpolation methods like the nearest neighbor, bilinear, and bicubic to change the cell size or align raster grids, using RS_Resample.

SELECT RS_Resample(rast, 50, -50, -13063342, 3992403.75, true, "bicubic")

For more information please follow the link.

Execute map algebra operations¶

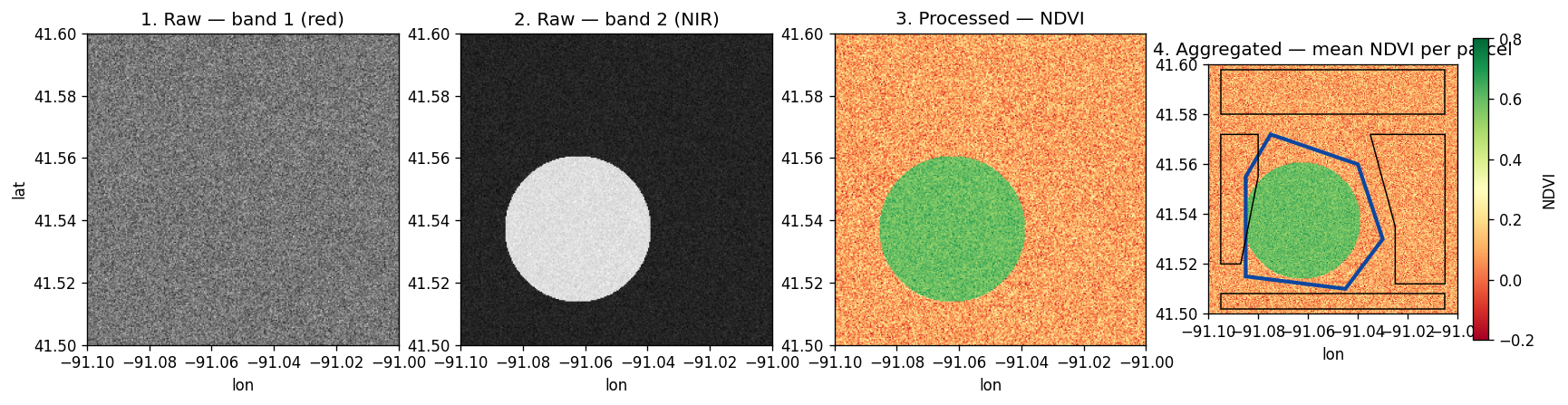

Map algebra is a way to perform raster calculations using mathematical expressions. The expression can be a simple arithmetic operation or a complex combination of multiple operations.

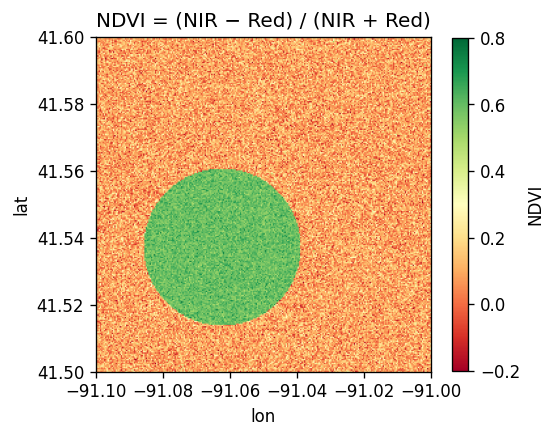

The Normalized Difference Vegetation Index (NDVI) is a simple graphical indicator that can be used to analyze remote sensing measurements from a space platform and assess whether the target being observed contains live green vegetation or not.

NDVI = (NIR - Red) / (NIR + Red)

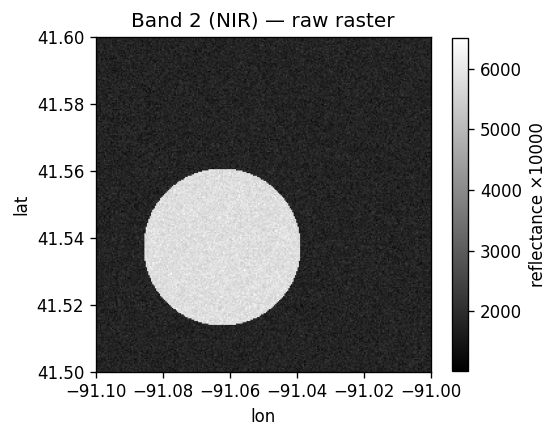

where NIR is the near-infrared band and Red is the red band.

SELECT RS_MapAlgebra(raster, 'D', 'out = (rast[3] - rast[0]) / (rast[3] + rast[0]);') as ndvi FROM raster_table

For more information please refer to Map Algebra API.

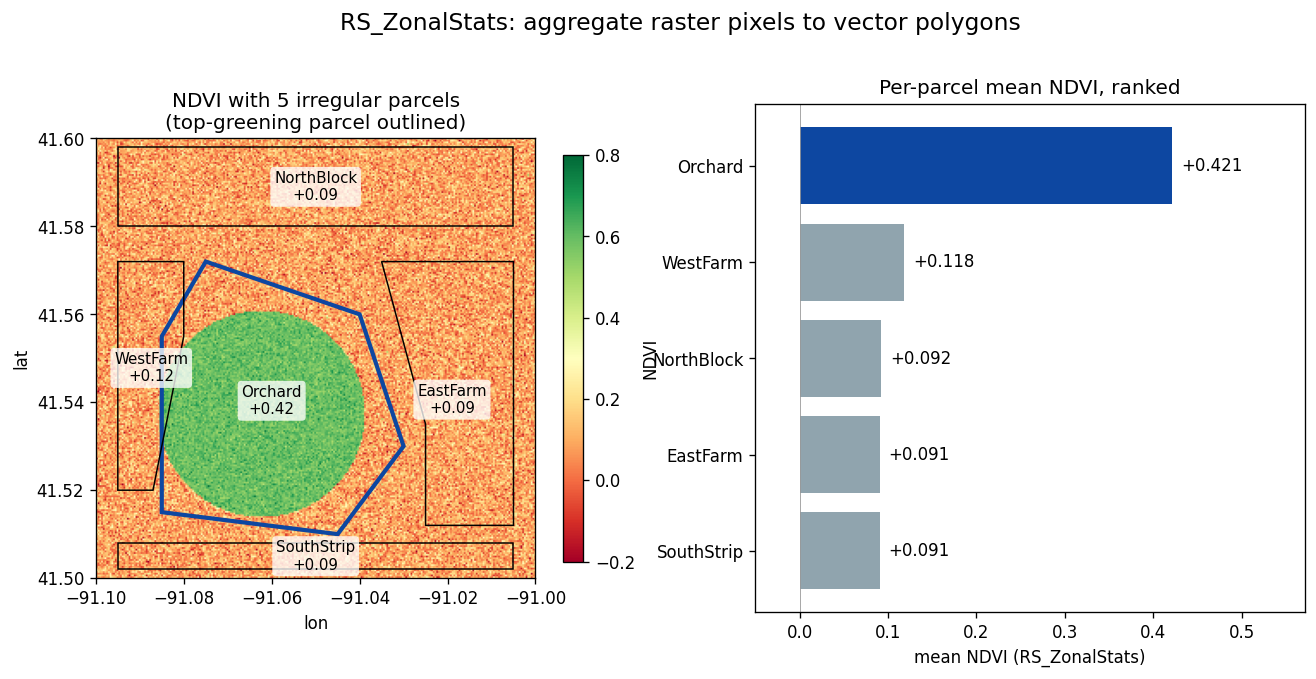

Interoperability between raster and vector data¶

Geometry As Raster¶

Sedona allows you to rasterize a geometry by using RS_AsRaster.

SELECT RS_AsRaster(
        ST_GeomFromWKT('POLYGON((150 150, 220 260, 190 300, 300 220, 150 150))'),
        RS_MakeEmptyRaster(1, 'b', 4, 6, 1, -1, 1),
        'b', 230
    )

The image created is as below for the vector:

Rasterized vector

Note

The vector coordinates are buffed up to showcase the output, the real use case, may or may not match the example.

Spatial range query¶

Sedona provides raster predicates to do a range query using a geometry window, for example, let's use RS_Intersects.

SELECT rast FROM rasterDf WHERE RS_Intersect(rast, ST_GeomFromWKT('POLYGON((0 0, 0 10, 10 10, 10 0, 0 0))'))

Spatial join query¶

Sedona's raster predicates also can do a spatial join using the raster column and geometry column, using the same function as above.

SELECT r.rast, g.geom FROM rasterDf r, geomDf g WHERE RS_Interest(r.rast, g.geom)

Note

These range and join queries will filter rasters using the provided geometric boundary and the spatial boundary of the raster.

Sedona offers more raster predicates to do spatial range queries and spatial join queries. Please refer to raster predicates docs.

Visualize raster images¶

Sedona provides APIs to visualize raster data in an image form.

Base64 String¶

The RS_AsBase64 encodes the raster data as a Base64 string and can be visualized using online decoder.

SELECT RS_AsBase64(rast) FROM rasterDf

HTML Image¶

The RS_AsImage returns an HTML image tag, that can be visualized using an HTML viewer or in Jupyter Notebook. For more information please click on the link.

SELECT RS_AsImage(rast, 500) FROM rasterDf

The output looks like this:

Output

Tip

In a Jupyter notebook, use SedonaUtils.display_image to render rasters directly — no need to call RS_AsImage manually:

from sedona.spark import SedonaUtils

SedonaUtils.display_image(rasterDf)

See Display raster in Jupyter for details.

2-D Matrix¶

Sedona offers an API to visualize raster data that is not sufficient for the other APIs mentioned above.

SELECT RS_AsMatrix(rast) FROM rasterDf

Output will be as follows:

| 1   3   4   0|
| 2   9  10  11|
| 3   4   5   6|

Please refer to Raster visualizer docs to learn how to make the most of the visualizing APIs.

Save to permanent storage¶

Saving raster data is a two-step process: (1) convert the Raster column to binary format using an RS_AsXXX function, and (2) write the binary DataFrame to files using Sedona's raster data source writer.

Step 1: Convert to binary format¶

Choose one of the following output format functions:

Function	Format	Description
RS_AsGeoTiff	GeoTiff	General-purpose raster format with optional compression
RS_AsCOG	Cloud Optimized GeoTiff	Ideal for cloud storage with efficient range-read access
RS_AsArcGrid	Arc Grid	ASCII-based format, single band only
RS_AsPNG	PNG	Image format, unsigned integer pixel types only

SELECT RS_AsGeoTiff(rast) AS raster_binary FROM rasterDf

Step 2: Write to files¶

Use Sedona's built-in raster data source to write the binary DataFrame:

ScalaPython

rasterDf.withColumn("raster_binary", expr("RS_AsGeoTiff(rast)"))
  .write.format("raster").mode("overwrite").save("my_raster_file")

rasterDf.withColumn("raster_binary", expr("RS_AsGeoTiff(rast)")).write.format(
    "raster"
).mode("overwrite").save("my_raster_file")

The writer data source options are:

Option	Default	Description
`rasterField`	Last `binary` column in the schema	The name of the binary column to write. When the DataFrame has multiple binary columns, setting this explicitly is strongly recommended.
`fileExtension`	`.tiff`	File extension for output files (e.g., `.png`, `.asc`).
`pathField`	None	Column name containing the output file names. Only the base name is used (directory components are stripped), and any existing file extension is replaced by `fileExtension`. If not set, each file gets a random UUID name.
`useDirectCommitter`	`true`	If `true`, files are written directly to the target location. If `false`, files are written to a temp location first. Writing with `false` is slower, especially on object stores like S3.

Example with all options:

ScalaPython

rasterDf.withColumn("raster_binary", expr("RS_AsGeoTiff(rast)"))
  .write.format("raster")
  .option("rasterField", "raster_binary")
  .option("pathField", "name")
  .option("fileExtension", ".tiff")
  .mode("overwrite")
  .save("my_raster_file")

rasterDf.withColumn("raster_binary", expr("RS_AsGeoTiff(rast)")).write.format(
    "raster"
).option("rasterField", "raster_binary").option("pathField", "name").option(
    "fileExtension", ".tiff"
).mode(
    "overwrite"
).save(
    "my_raster_file"
)

The produced file structure will look like this:

my_raster_file
- part-00000-6c7af016-c371-4564-886d-1690f3b27ca8-c000

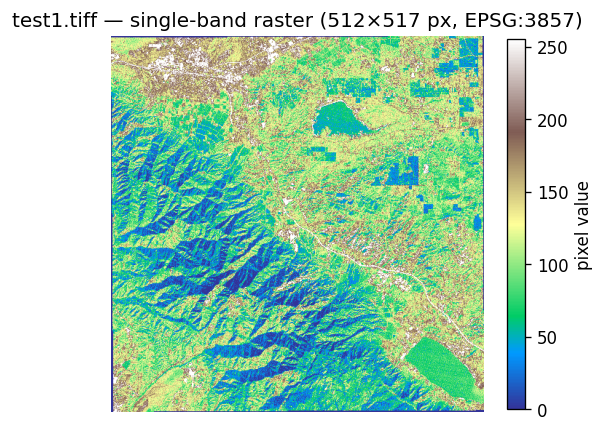

    - test1.tiff
    - .test1.tiff.crc
- part-00001-6c7af016-c371-4564-886d-1690f3b27ca8-c000
    - test2.tiff
    - .test2.tiff.crc
- _SUCCESS

To read the saved rasters back:

rasterDf = sedona.read.format("raster").load("my_raster_file/*/*.tiff")

Collecting raster Dataframes and working with them locally in Python¶

Sedona allows collecting Dataframes with raster columns and working with them locally in Python since v1.6.0. The raster objects are represented as SedonaRaster objects in Python, which can be used to perform raster operations.

Tip

If you just want to quickly visualize a raster in Jupyter, use SedonaUtils.display_image(df) instead of collecting the DataFrame:

from sedona.spark import SedonaUtils

SedonaUtils.display_image(df_raster)

df_raster = (
    sedona.read.format("raster").option("retile", "false").load("/path/to/raster.tif")
)
rows = df_raster.collect()
raster = rows[0].rast
raster  # <sedona.raster.sedona_raster.InDbSedonaRaster at 0x1618fb1f0>

You can retrieve the metadata of the raster by accessing the properties of the SedonaRaster object.

raster.width  # width of the raster
raster.height  # height of the raster
raster.affine_trans  # affine transformation matrix
raster.crs_wkt  # coordinate reference system as WKT

You can get a numpy array containing the band data of the raster using the as_numpy or as_numpy_masked method. The band data is organized in CHW order.

raster.as_numpy()  # numpy array of the raster
raster.as_numpy_masked()  # numpy array with nodata values masked as nan

If you want to work with the raster data using rasterio, you can retrieve a rasterio.DatasetReader object using the as_rasterio method.

Note

You need to have the rasterio package installed (version >= 1.2.10) to use this method. You can install it using pip install rasterio.

ds = raster.as_rasterio()  # rasterio.DatasetReader object
# Work with the raster using rasterio
band1 = ds.read(1)  # read the first band

Writing Python UDF to work with raster data¶

You can write Python UDFs to work with raster data in Python. The UDFs can take SedonaRaster objects as input and return any Spark data type as output. This is an example of a Python UDF that calculates the mean of the raster data.

from pyspark.sql.types import DoubleType


def mean_udf(raster):
    return float(raster.as_numpy().mean())


sedona.udf.register("mean_udf", mean_udf, DoubleType())
df_raster.withColumn("mean", expr("mean_udf(rast)")).show()

+--------------------+------------------+
|                rast|              mean|
+--------------------+------------------+
|GridCoverage2D["g...|1542.8092886117788|
+--------------------+------------------+

It is much trickier to write an UDF that returns a raster object, since Sedona does not support serializing Python raster objects yet. However, you can write a UDF that returns the band data as an array and then construct the raster object using RS_MakeRaster. This is an example of a Python UDF that creates a mask raster based on the first band of the input raster.

from pyspark.sql.types import ArrayType, DoubleType
import numpy as np


def mask_udf(raster):
    band1 = raster.as_numpy()[0, :, :]
    mask = (band1 < 1400).astype(np.float64)
    return mask.flatten().tolist()


sedona.udf.register("mask_udf", band_udf, ArrayType(DoubleType()))
df_raster.withColumn("mask", expr("mask_udf(rast)")).withColumn(
    "mask_rast", expr("RS_MakeRaster(rast, 'I', mask)")
).show()

+--------------------+--------------------+--------------------+
|                rast|                mask|           mask_rast|
+--------------------+--------------------+--------------------+
|GridCoverage2D["g...|[0.0, 0.0, 0.0, 0...|GridCoverage2D["g...|
+--------------------+--------------------+--------------------+

Performance optimization¶

When working with large raster datasets, refer to the documentation on storing raster geometries in Parquet format for recommendations to optimize performance.
